Angle Line
Premium L-shaped structural steel profiles for construction, framing, and reinforcement applications

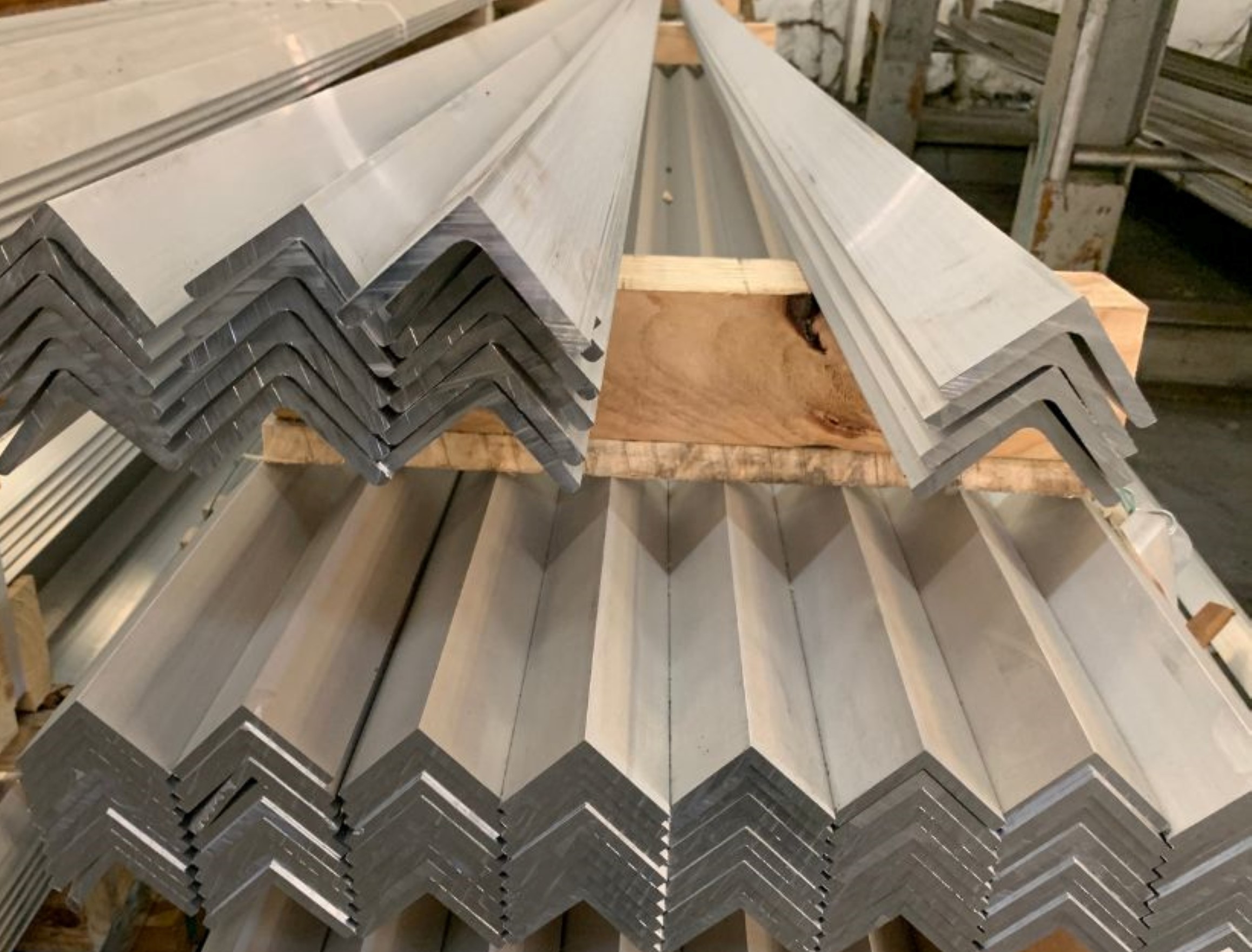

Stainless Steel Angles for Structural Applications
Pelican Metal Craft supplies certified stainless steel angles in Grade 304 and 316L for fabricators, contractors, and industrial manufacturers requiring corrosion-resistant structural support, equipment framing, and architectural reinforcement throughout Kenya, Uganda, Rwanda, and Tanzania.
Stainless steel angles provide essential structural components for equipment stands, framework assemblies, support brackets, and architectural applications where strength, durability, and corrosion resistance are non-negotiable requirements. Our angle inventory maintains precise dimensional tolerances, consistent material properties, and full certification documentation supporting quality management systems and project specifications.
Material Grades
Grade 304 - General Purpose Structural
The standard specification for most structural applications in non-corrosive environments. Grade 304 austenitic stainless steel (18% chromium, 8% nickel) provides:
- Excellent corrosion resistance for interior applications
- Good formability and weldability
- Cost-effective performance for general structural use
- Non-magnetic properties (may become slightly magnetic after cold working)
Typical Applications:
- Interior equipment frameworks
- Machine guards and safety enclosures
- Support brackets and reinforcement
- Food processing equipment structures (non-product contact)
- General fabrication projects
Grade 316L - Enhanced Corrosion Protection
Molybdenum-enhanced grade (2-3% Mo) providing superior resistance to chloride attack, pitting corrosion, and crevice corrosion. Essential for:
- Coastal installations (Mombasa, marine environments)
- Food processing areas exposed to acidic washdown
- Pharmaceutical facility structures
- Outdoor applications in industrial environments
- Applications requiring maximum corrosion resistance
The "L" Advantage: The "L" designation (low carbon, <0.03% C) prevents sensitization during welding, maintaining corrosion resistance in the heat-affected zone. Always specify 316L for welded structural applications.
Applications
Industrial Equipment Framing
- Support structures for tanks and vessels
- Equipment stands and platforms
- Conveyor framework
- Machine bases and guards
- Workstation frameworks
Architectural Applications
- Handrail systems and balustrades
- Structural glazing supports
- Canopy frameworks
- Entrance canopies and awnings
- Decorative structural elements
Food & Beverage Industry
- Equipment support frames in washdown areas
- Mezzanine flooring supports
- Platform structures for processing areas
- Safety railings in food production zones
Dairy Processing
- Milk tank supports and cradles
- Platform frameworks for CIP stations
- Pipe support structures
- Equipment access platforms
Pharmaceutical Facilities
- Cleanroom structural supports
- Equipment mounting frames
- Utility support structures
- Stainless steel mezzanines
Water Treatment
- Chemical dosing frame structures
- Pipe support racks
- Equipment mounting platforms
- Access walkways and handrails
Standard Angle Sizes & Specifications
Our angle inventory maintains precise dimensional tolerances, consistent material properties, and full certification documentation. Standard lengths: 6 meters (custom cutting available).
| Size (mm) | Thickness (mm) | Common Applications |
|---|---|---|
| 20 × 20 | 3 | Light framing, brackets, trim |
| 25 × 25 | 3 | Equipment guards, small supports |
| 30 × 30 | 3 | Handrail brackets, light structural |
| 40 × 40 | 3, 4, 5 | Equipment frames, tank supports |
| 50 × 50 | 3, 4, 5, 6 | Structural framing, machinery bases |
| 60 × 60 | 5, 6 | Heavy equipment supports |
| 65 × 65 | 5, 6, 8 | Industrial framework |
| 75 × 75 | 5, 6, 8, 10 | Structural columns, heavy supports |
| 80 × 80 | 6, 8, 10 | Primary structural members |
| 100 × 100 | 6, 8, 10, 12 | Major structural applications |
| 120 × 120 | 8, 10, 12 | Heavy industrial frameworks |
| 150 × 150 | 10, 12 | Large structural assemblies |
Alternative sizes and non-standard dimensions available on request. All angles supplied with EN 10204 3.1 mill test certificates.
Technical Specifications
Grade 304 Mechanical Properties
- Tensile Strength: 515 MPa minimum
- Yield Strength: 205 MPa minimum
- Elongation: 40% minimum
- Hardness: 201 HB maximum
Grade 316L Mechanical Properties
- Tensile Strength: 485 MPa minimum
- Yield Strength: 170 MPa minimum
- Elongation: 40% minimum
- Hardness: 217 HB maximum
Dimensional Tolerances
- Leg length: ±1.5mm for sizes up to 50mm; ±2.0mm for larger sizes
- Thickness: ±0.3mm to ±0.5mm depending on section size
- Straightness: Within 0.3% of length
- Squareness: 90° ± 2°
Fabrication Services
Beyond raw material supply, we offer complete fabrication services to reduce on-site fabrication time and ensure quality control:
Custom Cutting
Precision cutting to specified lengths (±2mm tolerance)
Drilling & Punching
Hole patterns for bolt assemblies and mounting
Notching
Corner cuts for frame assembly
Miter Cutting
Angle cuts for corner joints and frames
Welding Preparation
Edge preparation for structural welding
Complete Fabrication
Pre-assembled frames and structures to your specifications
Surface Finishes
Mill Finish (2B)
Standard cold-rolled finish, slightly reflective. Suitable for most structural applications where appearance is secondary to function.
No. 4 Brushed Finish
Directional grain finish for architectural applications where aesthetic appearance matters. Resists fingerprints and minor scratches.
Pickled & Passivated
Chemical treatment removing heat scale and enhancing corrosion resistance. Recommended for welded assemblies and food-grade applications.
Electropolished
Available on request for pharmaceutical and ultra-clean applications requiring documented surface finish.
Why Choose Pelican Metal Craft Angles
Certified Material Quality
Every angle shipment includes EN 10204 3.1 mill test certificates documenting chemical composition and mechanical properties. Heat number traceability supports quality management systems, ISO certification, and project documentation requirements.
Local Stock Availability
Our Nairobi warehouse maintains comprehensive angle inventory eliminating import delays, currency risk, and shipping uncertainties. Material available for immediate collection or delivery throughout Kenya, Uganda, and Rwanda.
Technical Support
Our team provides structural design guidance, material selection advice, and fabrication recommendations based on your specific application requirements and operating environment.
Custom Fabrication Capability
Beyond raw material supply, we offer complete fabrication services for frames, supports, and structural assemblies—reducing your on-site fabrication time and ensuring quality control in our workshop.
